System Requirements¶

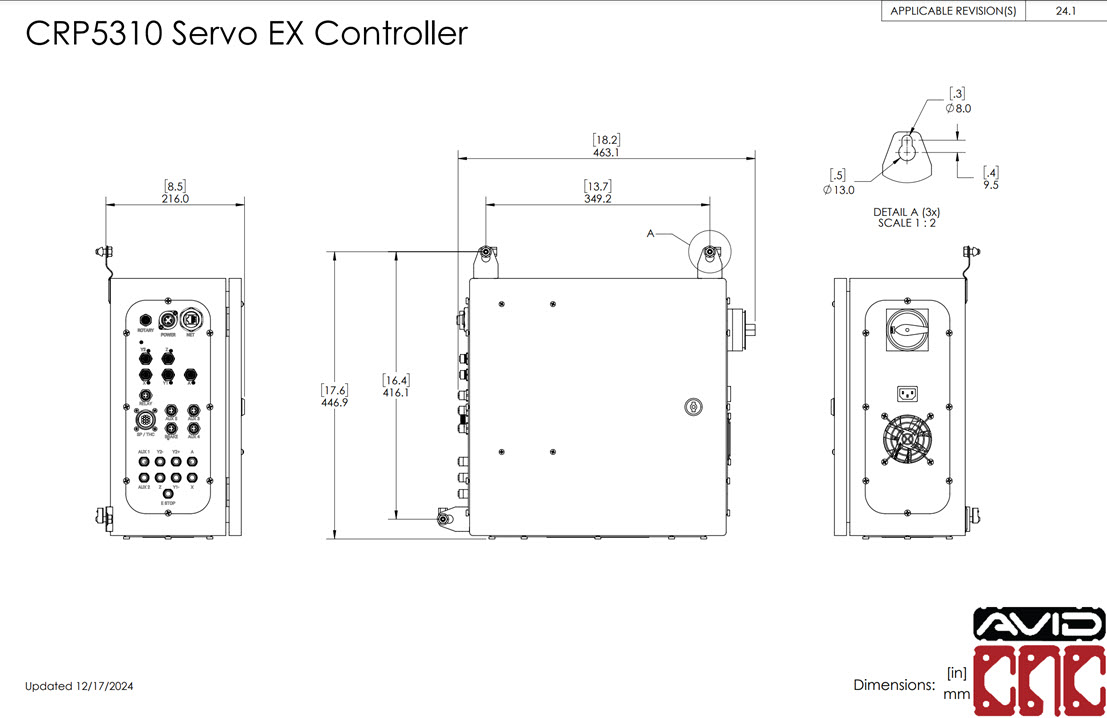

Size Requirements¶

CRP5310-00 EX Servo Control Box

Power Requirements¶

Servo EX Controller

• Input power: 100-240VAC, 50/60Hz
• Max current draw (approx.): 12.8A^† @ 120VAC, 6.4A @ 240VAC

^† The C13 type input power socket is rated for 15A in North America and 10A in most international regions. In those regions the Controller should be powered with 200+ VAC.

Plug and Play Spindle / VFD Systems

Please see the Power Requirements section in our Plug and Play Spindle / VFD Manual.

Environmental Conditions¶

Operating Ambient Temperature: 32°F - 115°F (0°C - 46°C)

Maximum Ambient Humidity: 90% relative, non condensing
