    PRO Drive Gear Set

    Our improved Gear Set design features a double-row bearing for superior load handling and a replaceable Drive Gear Cartridge for cost effective maintenance.
    Standard Components
    Motor Configuration
    $49.75
    +
    -


    Exceptional Value
    The PRO Drive 2.0 system significantly reduces long term maintenance costs by allowing for isolated replacement of the Drive Gear Cartridge wear component.
    Integrated Double Row Ball Bearing
    Provides improved stability and load handling under demanding conditions.
    Optimized Tooth Design
    Engineered for superior motion and belt tracking.
    Backward Compatible
    The improved gear set design is compatible with all generations of our Rack and Pinion Drives, which are used on our large format PRO Router machines and PRO Plasma machines.

    PRO Drive 2.0 Gear Sets

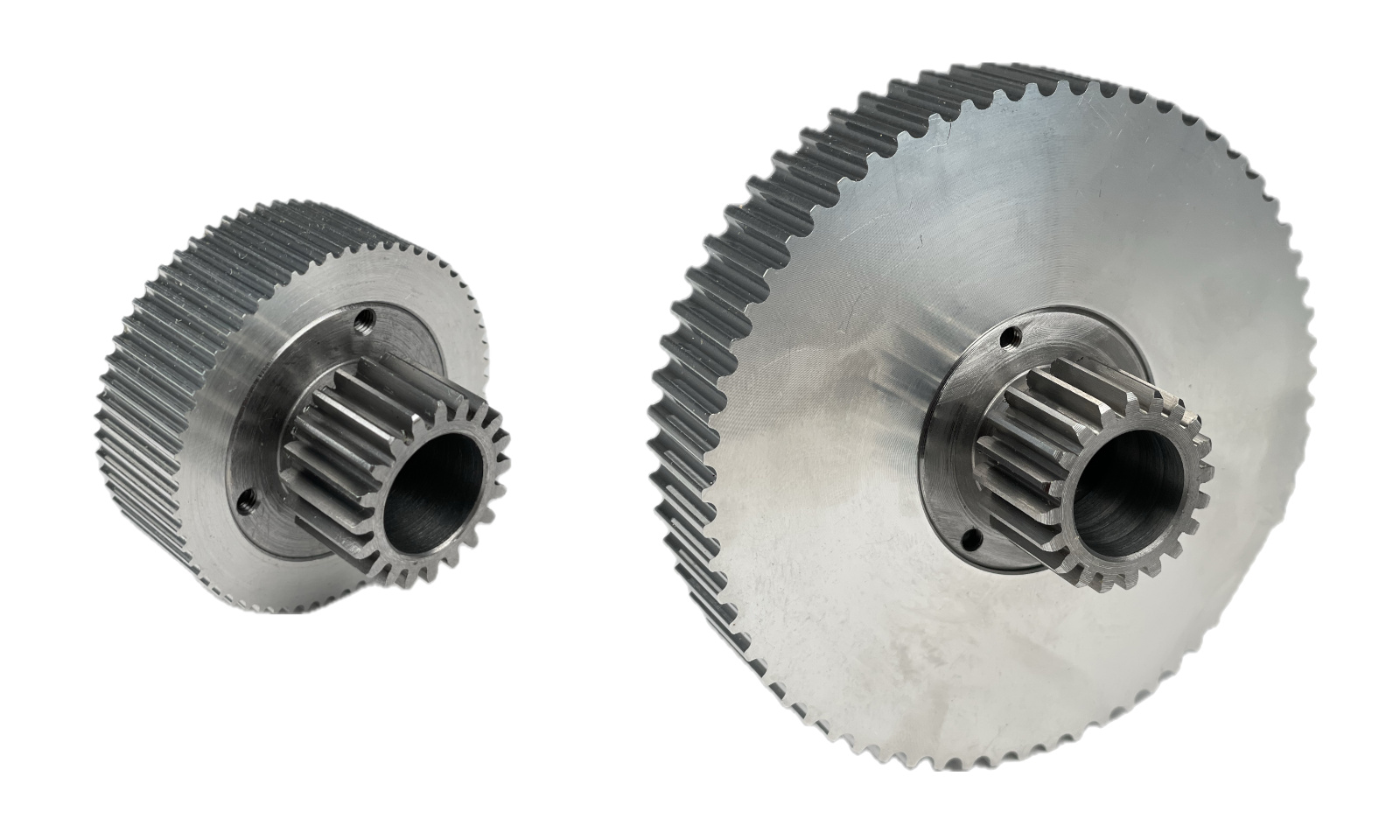

    Gear Set Comparison | NEMA 23 (Left), NEMA 34 (Right)


    What's Included


    Product Options / Configuration


    Motor Configuration
    NEMA 23 / NEMA 34
    Different sized gear sets are used to achieve the appropriate drive ratio. Choose the option that matches your application.

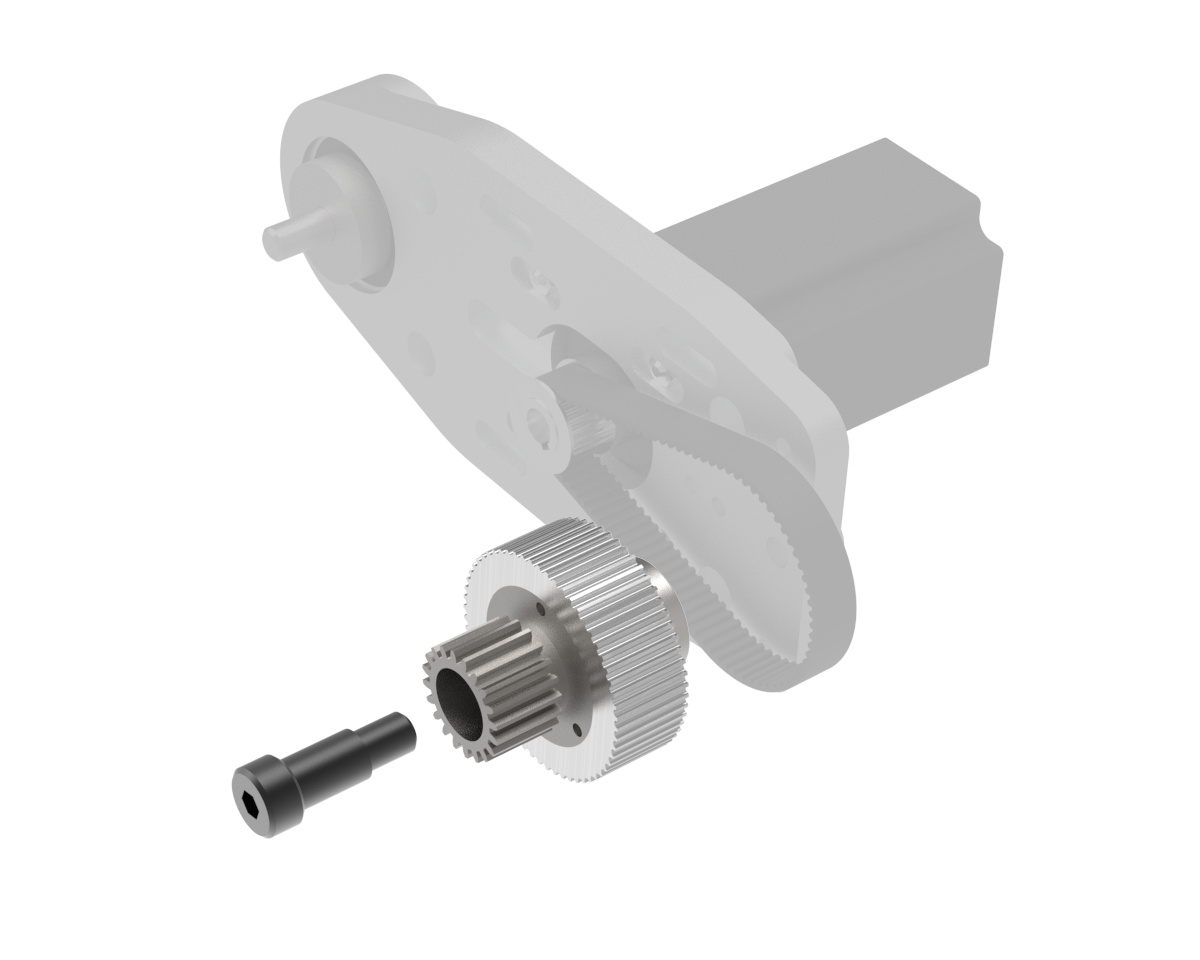

    PRO Drive 2.0 Gear Set - N23
    As used in a NEMA 23 Drive

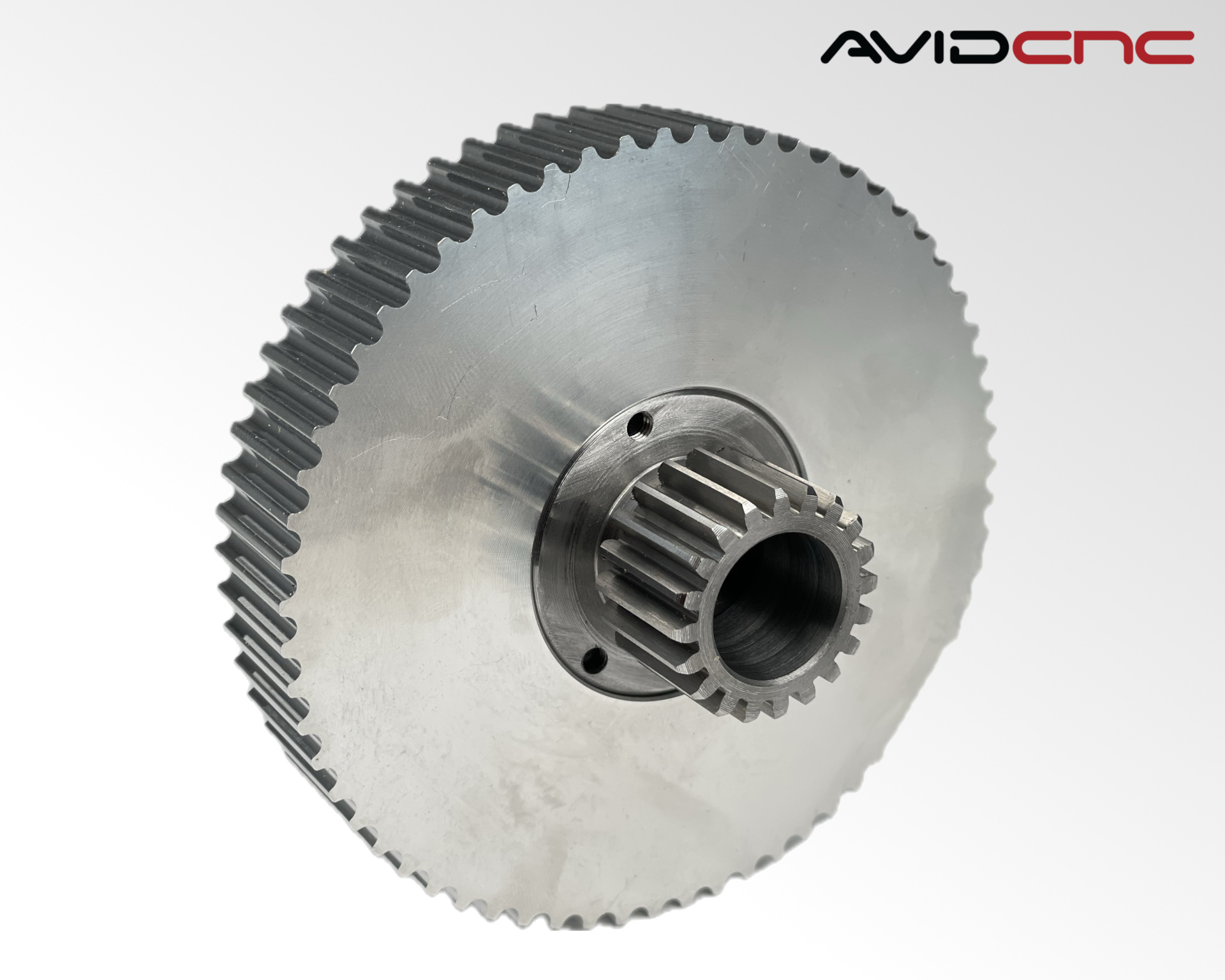

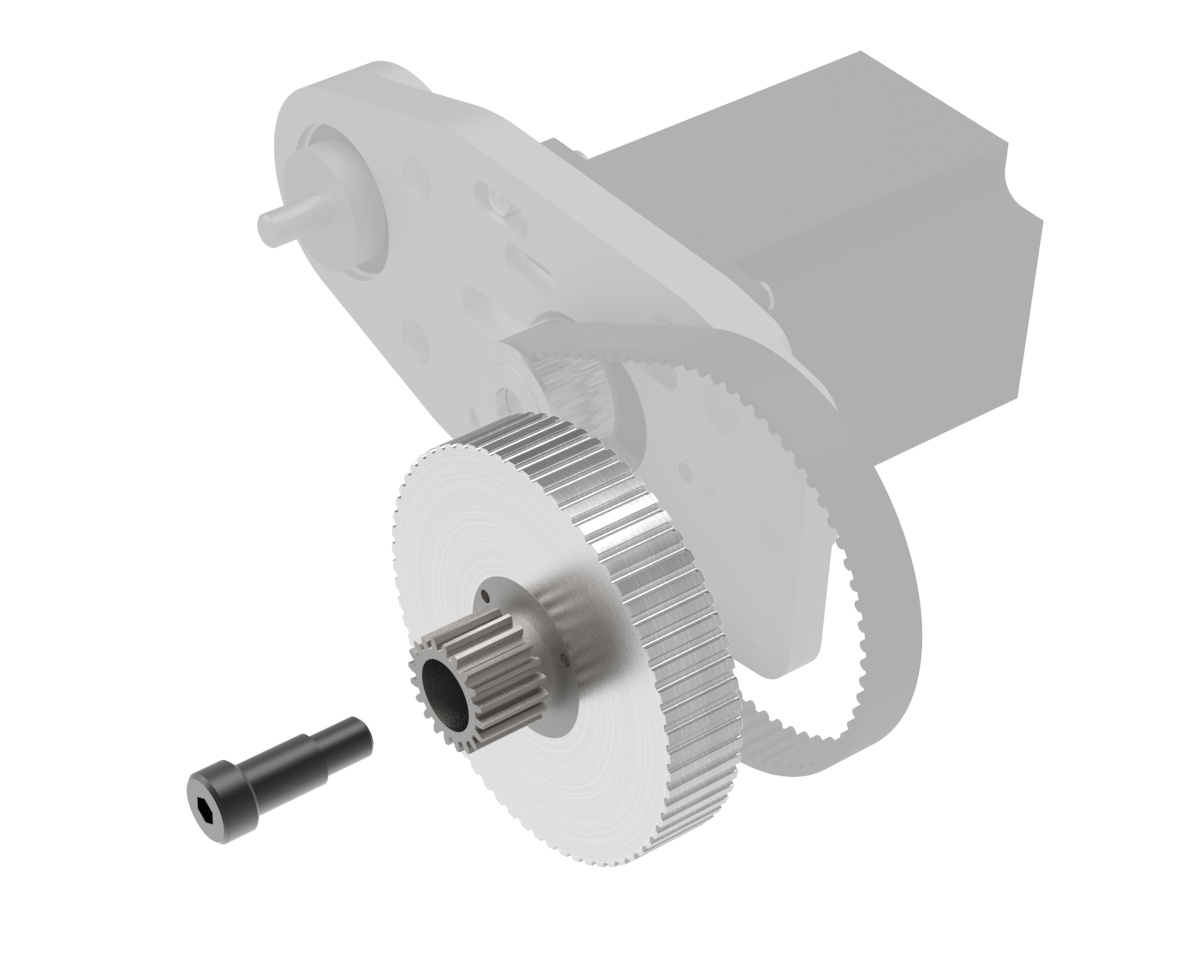

    PRO Drive 2.0 Gear Set - N34
    As used in a NEMA 34 Drive


    Technical

    Specifications

      Motor Configuration
      NEMA 23 NEMA 34
    Gear Set Part Number CRP325-00-M4 CRP324-00-M4
    Replaces Part Number CRP325-00-01 CRP324-00-01
    Drive Pulley Tooth Qty 60 64
    Drive Gear Tooth Qty 20
    Drive Gear Cartridge CRP326-00
