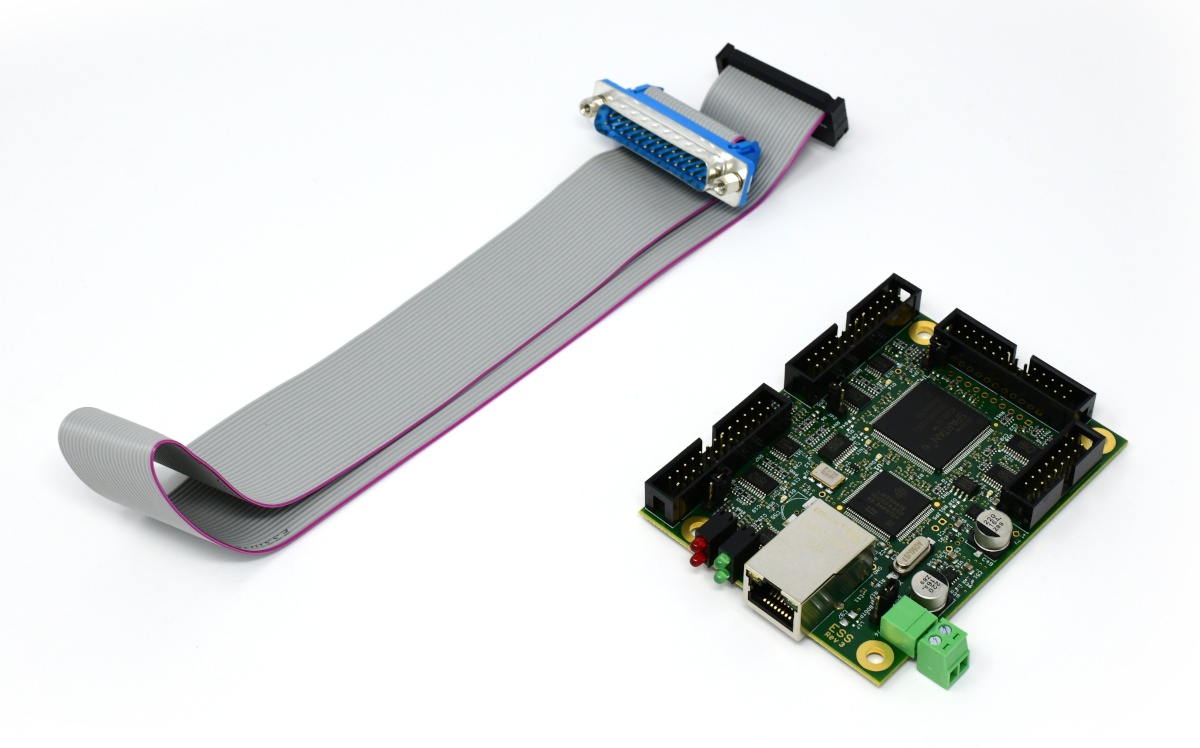

Ethernet SmoothStepper

Enables Mach4 access with a modern PC that lacks a parallel port or runs a 64-bit version of Windows.

Standard Components

Cable Configuration

$200.00

OVERVIEW

Enables Mach4 access with a modern PC that lacks a parallel port or runs a 64-bit version of Windows.
Provides a reliable and robust communication path between your PC and CNC electronics.
Greatly reduces most potential Windows-related communication issues by providing a dedicated real-time DSP (digital signal processor).
DB25 to LPH26 ribbon cable option allows the Ethernet SmoothStepper to plug directly into all-in-one motor drivers like the MX4660.
The LPH26 ribbon cable option handles the connection to breakout boards with a 26-pin header, like the PMDX-126.
